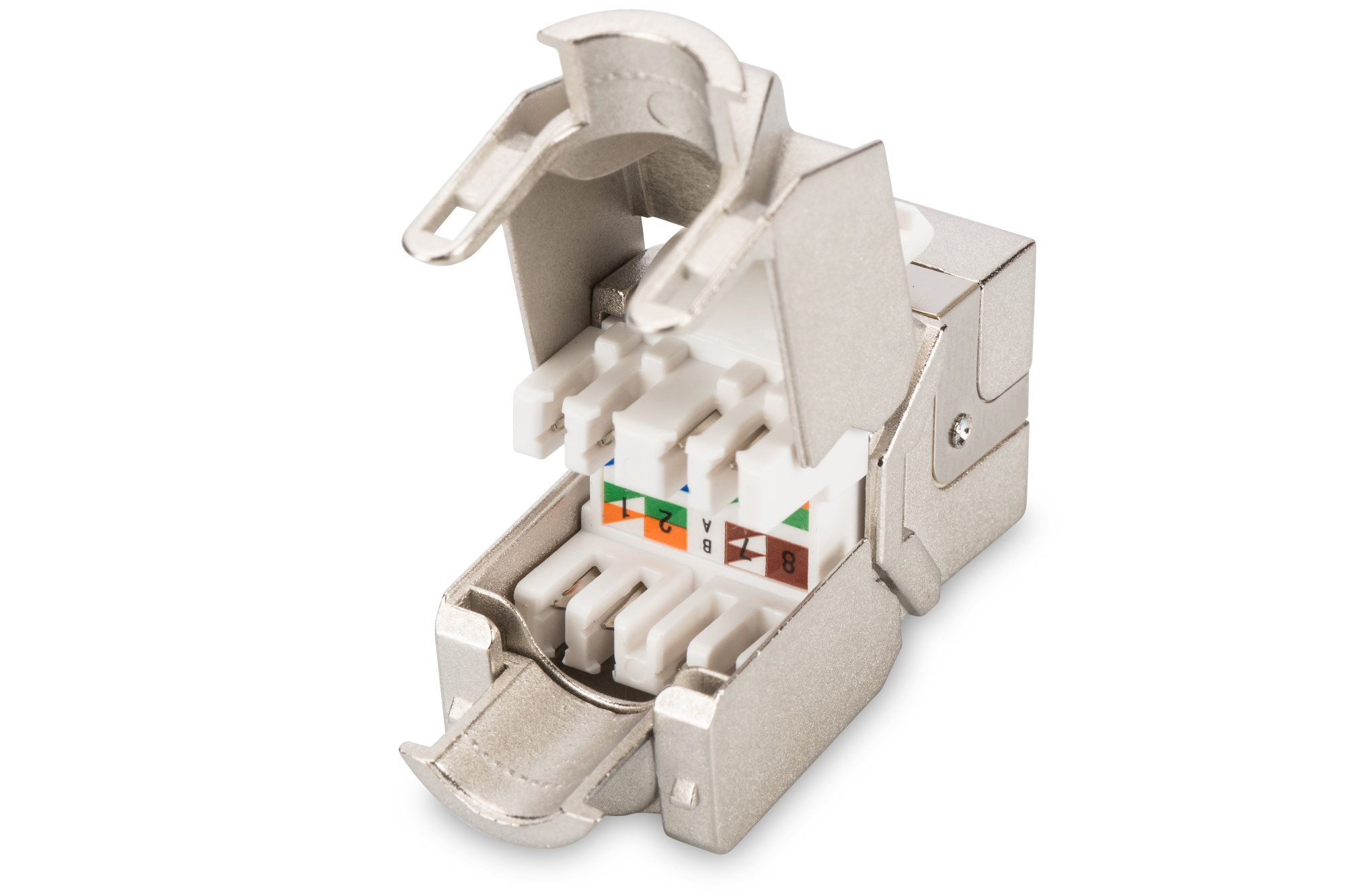

Digitus DN-93612-1

Material enclosure: Zinc diecast - Nickel plated Material contacts: Phosphor bronze 360° cable screen connection for enhanced EMI protection Contacts coating: Nickel, gold plated 0.5 µ Operating Temperature: -10 °C up to +60 °C (ISO/IEC 11801, ANSI/TIA 568 C.2) Material PCB: FR4, UL 94V-0, multilayer 1.45 mm thickness Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-5) Diameter Cu-Conductor: AWG (26/1 ... 22), stranded and solid RJ45 jack, female, for patch panel installation Compact form allows an installation of 24 x in 483mm (19") 1U blank Panel Suitable for bracket type DN-91410, DN-91411, DN-91412 Opening size acc. Keystone Standard 19.35 mm x 14.8 mm Tool free cable installation via LSA stripes, color coded according to EIA/TIA 568 A & B Suitable for design wall plates for several well-known switching programs e.g. Busch-Jaeger part number: 1812 or 1866EB Suitable for design wall plates for switching program PEHA part number: D 600 MJ8 Suitable for design wall plates for switching program FELLER (CH) EDIZIOdue part number e.g.: 1183-028.FMI.F.61 Fits easily in wall- and floor boxes, patch panels, desk boxes through short depth POE+ according to IEEE 802.3at Meets requirements acc. following standards: IEC 60603-7-51, ANSI/TIA/EIA 568-C.2, IEC 60512-27-100, ISO/IEC 11801 am. 2. Dimensions (HxWxD): 20,14,34 mm Weight: 22 g
